Basic Labour / Fitting Charge – €7

Bar tape fitting

Cutting Handlebars to size

Fitting Handlebars (road handlebars €20 because of time consumption)

Fitting baskets, mudguards and car racks

Service 1 – €45 (€25 non geared bikes)

Frame and forks checked for damage

Headset and steering bolts checked and adjusted

Bottom Bracket and crankset checked and externally adjusted

Hubs checked and externally adjusted

Wheel true checked (truing is €15-€25 extra + €1 / 50c per spoke)

Brakes checked and sdjusted

Gears checked and adjusted

Drive greased if necessary

Tyres checked for wear and pumped to correct pressure

Safety Check of all fittings

Address

Hollingsworth Cycles, 54-56 Templeogue Rd, Templeogue Village, Dublin, D6W PC84

Monday-Friday

9:30-6:30

Saturday

9:30-6:00

Facebook

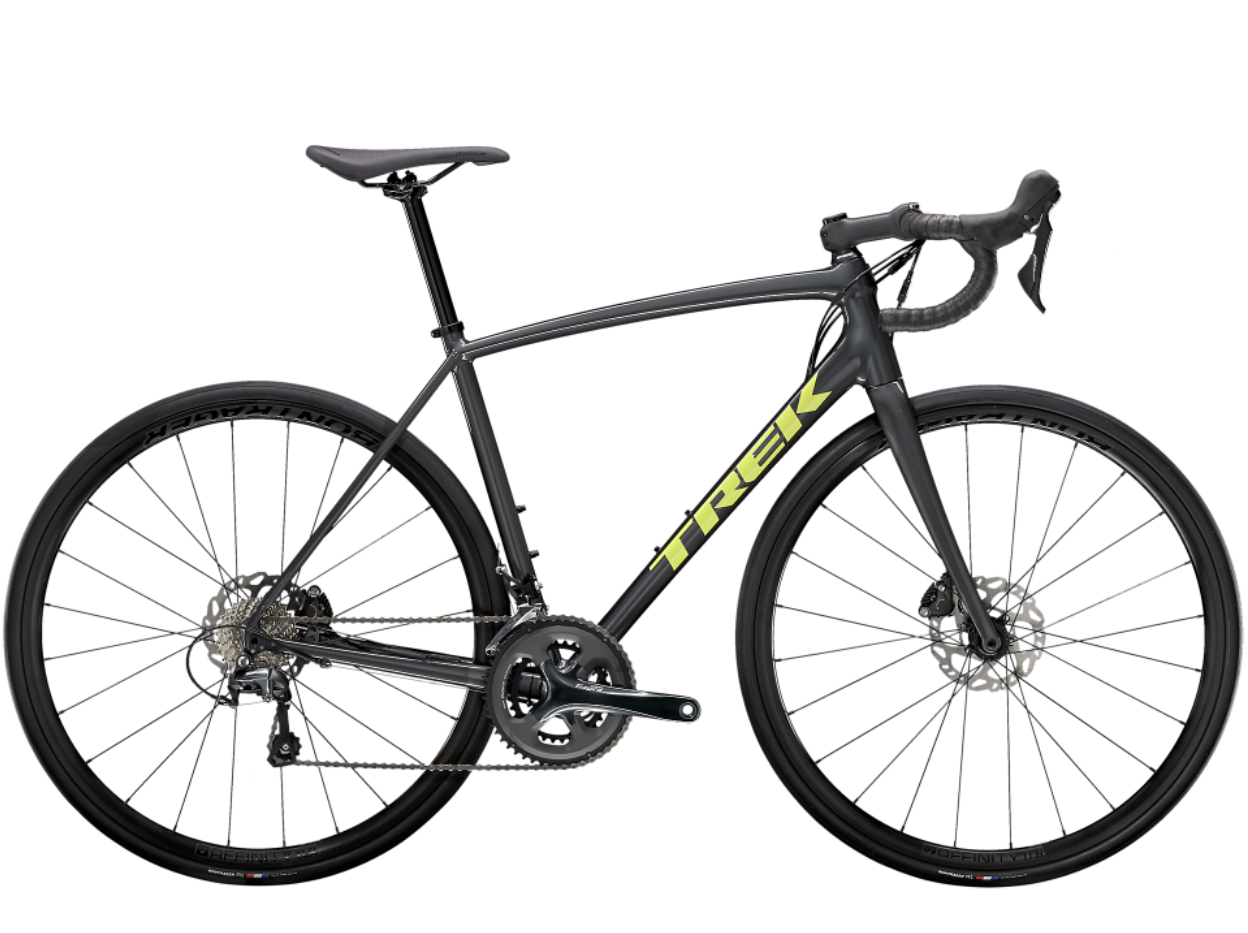

Frame	Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Frame fit	H2

Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rim	Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x 25 c
Max tyre size	28c Bontrager tires (with at least 4mm of clearance to frame)

Shifter	Shimano Tiagra R4725, short-reach lever, 10-speed
Front derailleur	Shimano Tiagra 4700, braze-on
Rear derailleur	Shimano Tiagra 4700, long cage, 34T max cog
*Crank	Size: 47, 50, 52 Shimano Tiagra 4700, 50/34, 170 mm length
Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5 mm length
Size: 58, 60, 62, 64 Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket	Shimano BB71, 86.5 mm, PressFit
Cassette	Shimano Tiagra HG500, 12-28, 10-speed
Chain	Shimano Tiagra HG54, 10-speed

Saddle	Bontrager Montrose Comp, steel rails, 138 mm width
*Seatpost	Size: 47 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 50, 52, 54, 56, 58, 60, 62, 64 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 47 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width
Size: 50, 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 58, 60, 62, 64 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 60, 62 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake	Shimano Tiagra hydraulic disc
Brake rotor	Shimano SM-RT70, CenterLock, 160 mm

Weight	56 - 9.33 kg/20.58 lb
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
